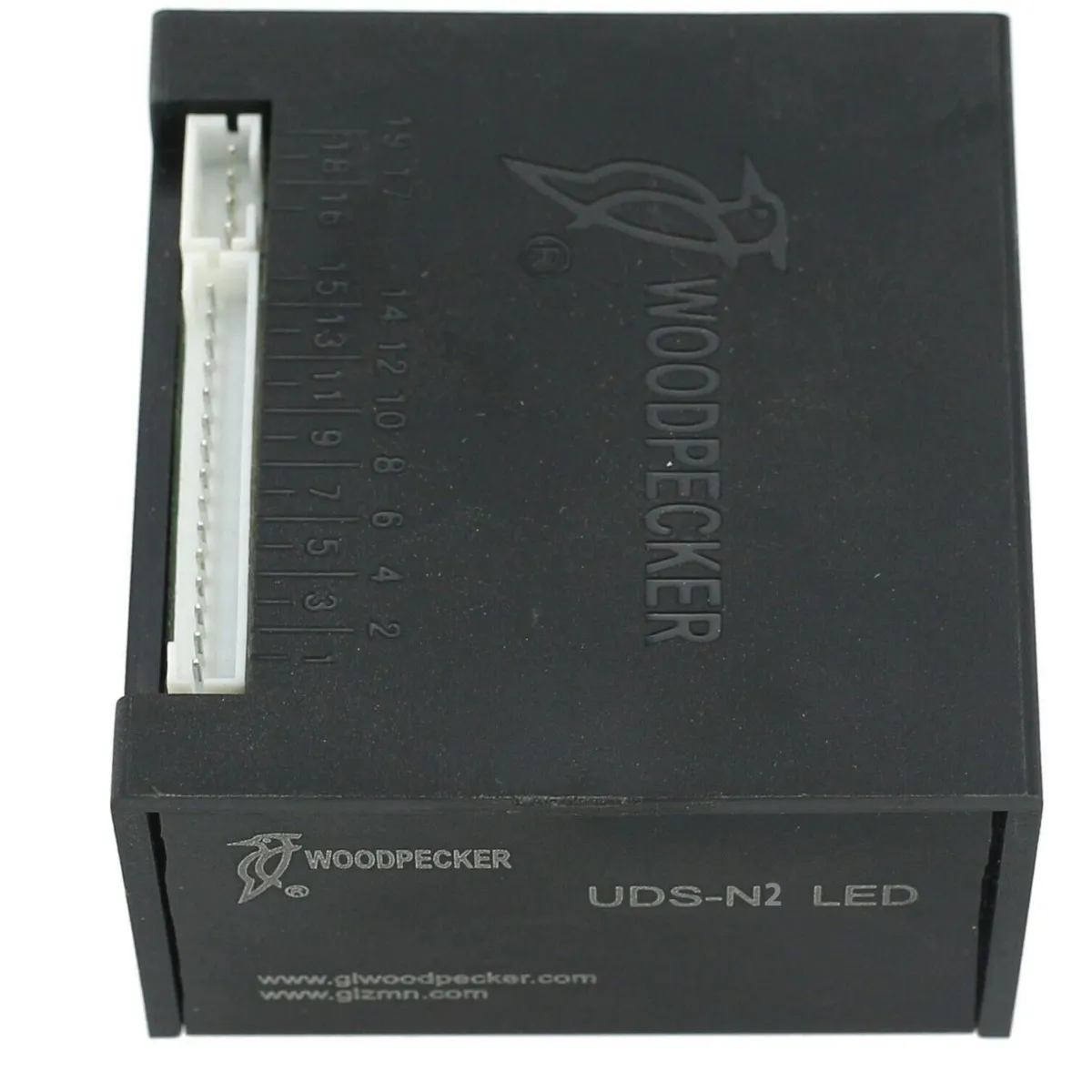

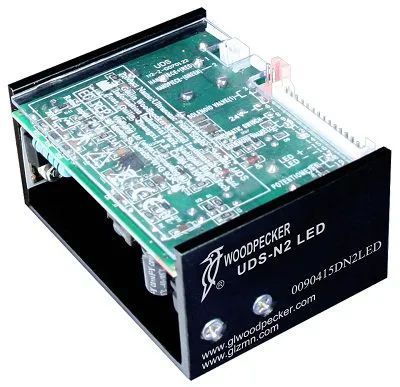

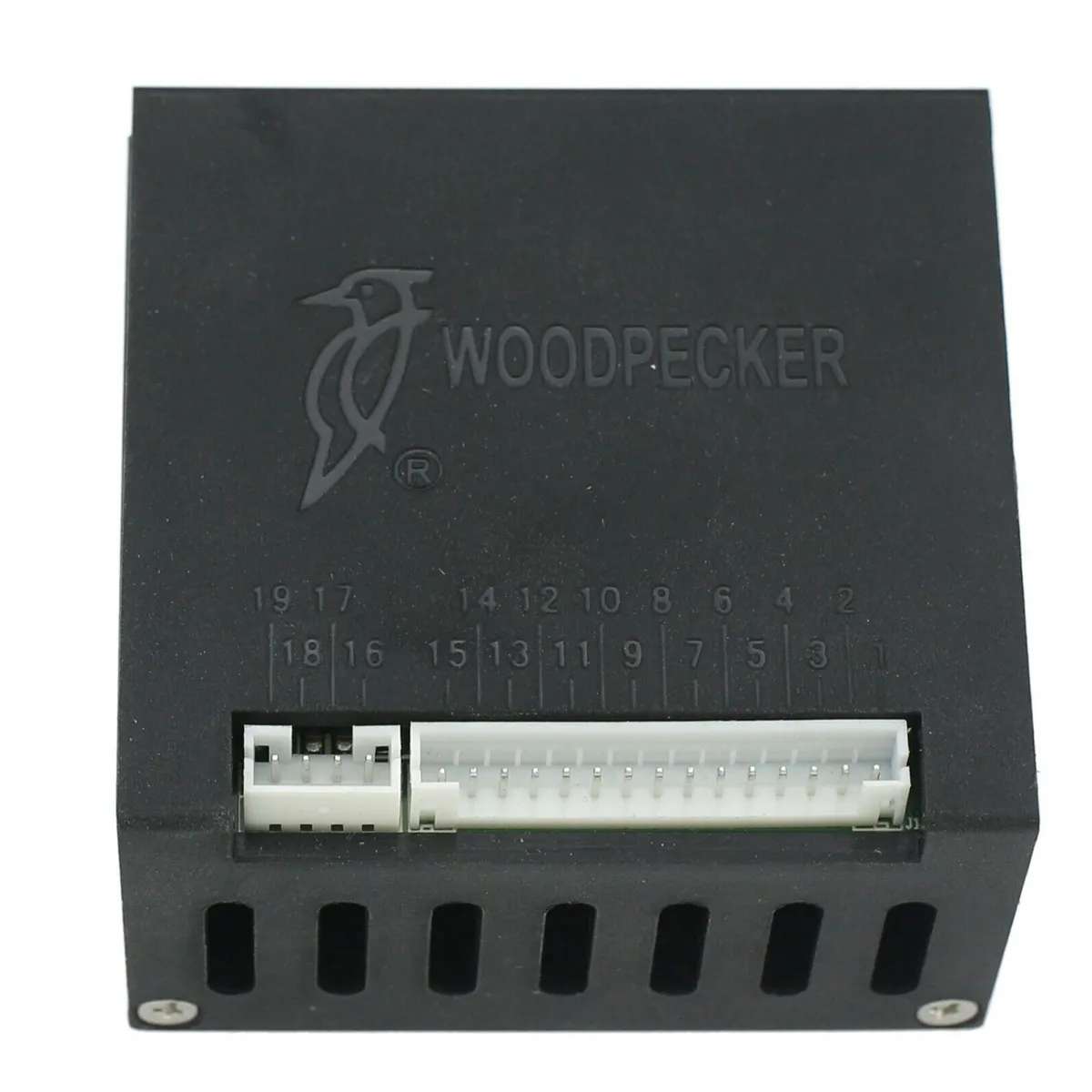

• This built-in ultrasonic piezo scaler UDS-N2 LED is used along with a dental unit for teeth cleaning(scaling).
• Optical handpiece, more convenient for clinical operation.
• The handpiece is detachable and can be autoclaved to 135℃ and 0.22MPa.
• Assembled with excellent piezo-ceramic, the handpiece has high and lasting power and generates little heat making it comfortable for the dentist and the patient.
• The cavitation produced from the end of the scaling tip makes the cleaning of teeth easy by eliminating calculus easily.
• Automatic frequency tracking ensures that the machine always works on the best frequency and performs more steadily.
• The adjustment range of the amplitude is much wider than before.
• Its small and light design makes it easy to operate.
• CE and FDA certificated.

The dental scaler for removing plaque, tartar, and deposits effectively.

• Power input: It can operate with a transformer at 220-240V~ 50Hz/60Hz 150mA or without a transformer at 24V~ 50Hz/60Hz 1.3A.
• Vibration excursion of the primary tip: Less than 100pm.
• Half-excursion force: Less than 2N.
• The vibration frequency of the tip: 28kHz+3kHz.
• Output power: Ranging from 3W to 20W.
• Water pressure: 0.01MPa to 0.5MPa.

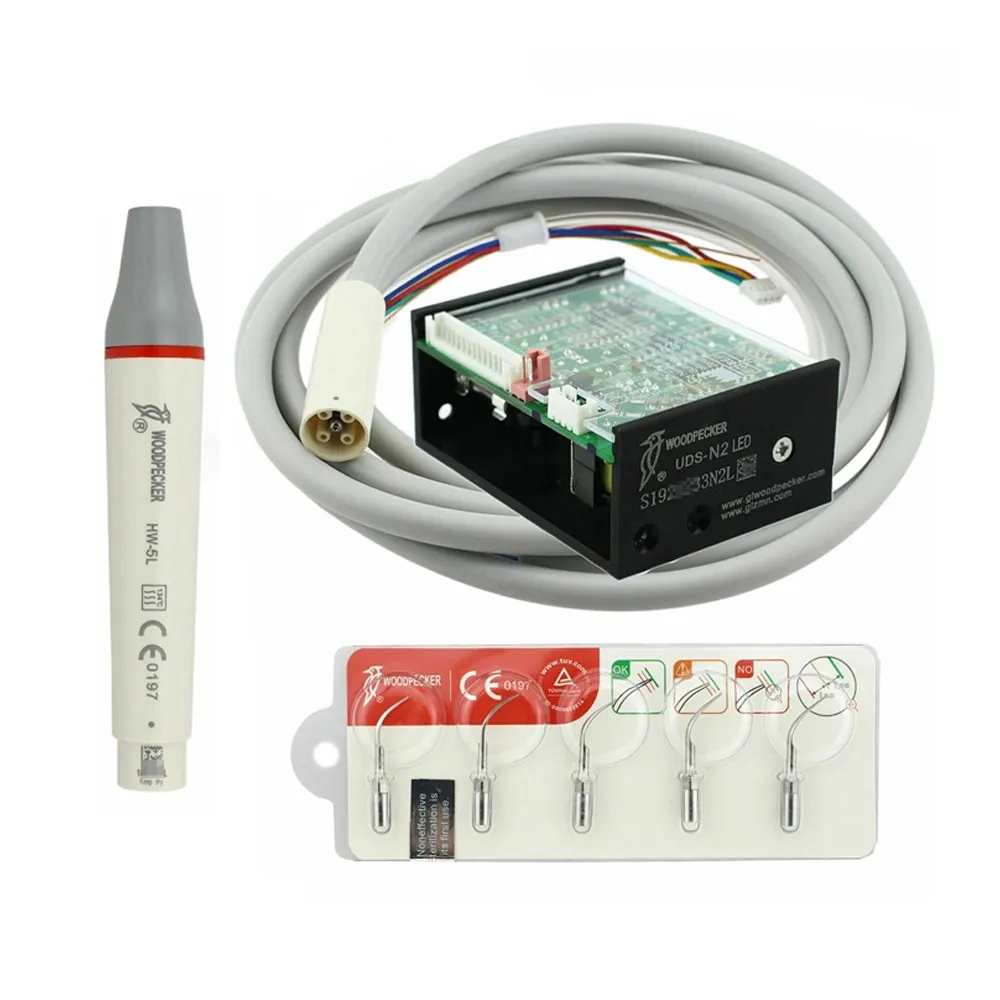

• 1 x Main Unit
• 1 x Handpiece
• 5 x Tips (2xG1,1xG2,1xG4,1xP1)
• 1 x Cable
• 1 x Torque Wrench
• 1 x Water Pipe
• 1 x Potentiometer Knob
• 1 x Potentiometer and Electronic Pipe
• 1 x Cutting Sleeve For Handpiece
• 6 x Waterproof “O” Ring
• 3 x Handpiece Decorative Ring
• 1 x Two Sided Adhesive Foam
• 3 x Nylon Cable Tie
• 1 x Packaging List
• 1 x Instruction Manual

Preparation:

• • Ensure that the Guilin Woodpecker ultrasonic scaler, UDS-N2 LED model, is properly assembled and sterilized before use.
  • Connect the scaler to a suitable power source and ensure that it is securely plugged in.

Patient Preparation:

• • Ensure that the patient is comfortably positioned in the dental chair.
  • Place a protective bib or towel around the patient’s neck to prevent water splatter.

Handpiece Setup:

• • Attach the appropriate scaling tip to the handpiece. Choose a tip based on the treatment requirements and the condition of the patient’s teeth.
  • Tighten the tip securely using the provided torque wrench.
  • Connect the handpiece to the scaler’s main unit.

Water Irrigation:

• • Fill the water bottle attached to the scaler with clean, distilled water.
  • Adjust the water flow control knob on the scaler to ensure a steady stream of water during the procedure.
  • Position the water nozzle close to the treatment area to facilitate efficient cooling and debris removal.

Power On and Settings:

• • Switch on the scaler’s main unit using the designated power button.
  • Set the desired power level according to the treatment requirements. Start with a lower power setting and gradually increase if necessary.
  • Adjust the scaling mode (continuous or intermittent) based on the procedure being performed.

Procedure:

• • Hold the scaler’s handpiece with a comfortable grip, ensuring a firm but relaxed grasp.
  • Position the scaling tip at a 0-45 degree angle to the tooth surface.
  • Gently and gradually guide the tip along the tooth surface, moving in small, overlapping strokes.
  • Pay attention to areas with heavy calculus or plaque buildup, giving them extra attention.
  • Maintain a constant flow of water to rinse away debris and keep the tip and treatment area clean.
  • Take breaks as needed to allow the patient to rinse and rest their mouth.

• Country of Origin: PRC
• Manufacturer: Woodpecker

• Manufacturer/Importer warranty of 5 year Warranty (from the date of invoice) on PCB (Power Circuit Board) and 12 months warranty is applicable on all the parts of the product excluding physical damage as applicable for this product.
• Service and Warranty are handled by the manufacturer/importer directly for this product
• Supreme Dental will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Supreme Dental and the Buyer acknowledge that the Products purchased/usedare a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Supreme Dental may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.
