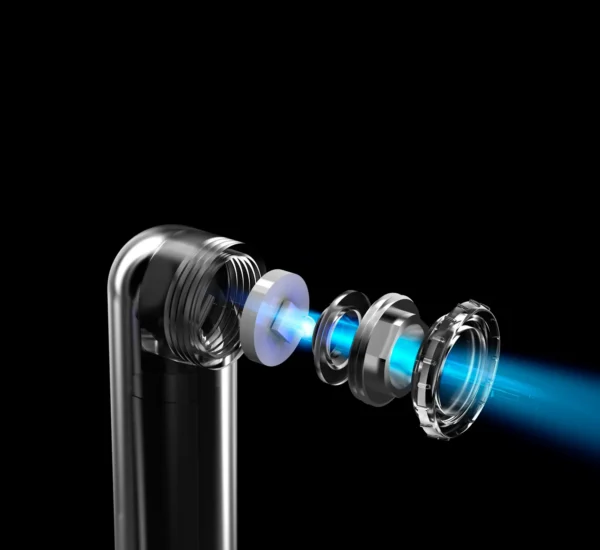

• High-intensity LED light source for efficient and reliable curing of dental materials.
• Lightweight and ergonomic design for comfortable handling and reduced hand fatigue during extended use.
• Digital display for easy monitoring of curing time and power settings.
• The blue light wavelength of approximately 385nm to 515nm to activate photoinitiators and ensure proper material curing.
• User-friendly interface with intuitive controls for convenient operation.
• Durable construction and high-quality materials for long-lasting performance.

High-power LED curing light with rapid 1-second curing capability.

• Adapter Input: AC 100~240V , 50Hz/60Hz
• Output: DC 5V1A
• High power: Blue Light 5W
• Wavelength: 385nm to 515nm
• Size: 268.8mm*26.1 mm*31.8mm
• Intensity High: 2300~2500 MW/cm2
• Intensity Normal: 1000~1200 MW/cm2
• Net Weight: 259g
• Battery Model:  ICR 18490
• Battery capacity: 1400mAh
• A full charge can be used for more than 400 times continuously under 10s working time mode.

• 1 x  Main Unit of the LED
• 1 x Light Hood
• 1 x Adapter
• 1 x Pedestal Charger
• 50 x Disposable Light Cure Sleeves
• 1 x Instruction Manual

Charging:

• • Before using the curing light for the first time, recharge the battery for at least 4 hours.
  • Connect the plug of the adapter to the AC100V~240V power supply.
  • Connect the output plug of the adapter to the DC 5V input plug of the charging cradle.
  • Place the main unit into the charging cradle.
  • Allow the battery to fully charge, and then unplug the adapter.

Mode and Time Setting:

• • Press the mode button to select the working mode (High or Norm).
  • The corresponding indicator will illuminate when a mode is set.
  • Press the time button to set the solidifying time according to the selected mode.
  • High Mode: Choose between 1 second (1S) or 3 seconds (3S).
  • Norm Mode: Choose between 5 seconds (5S), 10 seconds (10S), 15 seconds (15S), or 20 seconds (20S).

Operation:

• • Position the top of the main unit at the desired area for solidification.
  • Press the power button to activate the curing light.
  • A “di” sound will indicate the light is working, and the LED will emit blue light.
  • The countdown time will be displayed on the screen.
  • Once the countdown reaches 0, the work is complete, and the screen will return to the set time.
  • To stop the operation at any time, press the power switch button.
  • For immediate consecutive use, short-press the button to start the next working cycle.
  • Note: If the main unit becomes significantly hot, turn off the device until it cools down. Avoid continuous illumination for more than 10 times.

Low Power and Charging:

• • The main unit has a low-power detection circuit.
  • When low power is detected, the battery symbol display LED will flash.
  • Charge the device promptly by connecting the adapter and placing the main unit into the charging cradle.
  • The Charge LED will turn red during charging.
  • Ensure a good connection between the main unit and the charging cradle by pressing the buckle firmly.
  • Clean the top of the main unit with a clean cloth to maintain light intensity and prevent contamination.

Safety Precautions:

• • Always wear a disposable isolation cover before using the machine.
  • Aim the light straightly at the resin to ensure proper solidification.
  • Use the original light hood provided to protect your eyes from blue light. Avoid direct exposure to eyes.
  • Only use the original adapter provided, as other brands may damage the circuit.
  • Avoid touching the charging point of the main unit with metal or conductive materials to prevent damage or short circuit.
  • Charge the battery in a cool and ventilated environment.
  • Do not disassemble the lithium battery, as it may cause circuit short or electrolyte leakage.
  • Avoid squeezing, shaking, or short-circuiting the battery. Do not store the battery with metal materials.
  • Ensure proper use of the device in accordance with safety classifications and contraindications mentioned in the manual.
