• Extended Battery Life: Can be used over 300 times with a full charge in the 10-second working time mode.
• Ergonomic Design: Compact and convenient design for comfortable handling during dental procedures.
• Efficient Light Filtering: Special light hood and holder design for high-efficiency light filtering.
• Easy Time Setting: Simple button operation for quick and easy time mode selection (5s, 10s, 20s).
• High Power LED: Features a 3W high power blue light LED with a wavelength range suitable for dental resin solidification.
• Portable and Lightweight: Compact size and lightweight construction for easy portability and maneuverability.

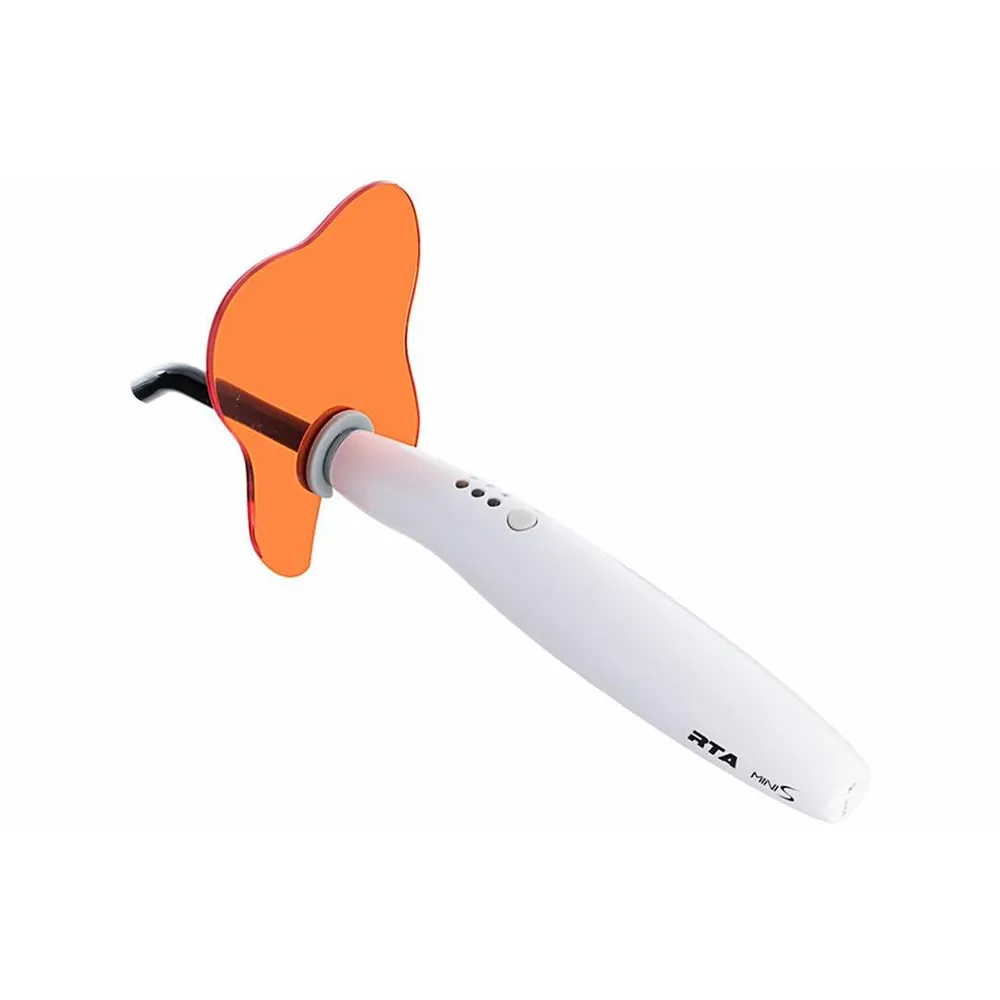

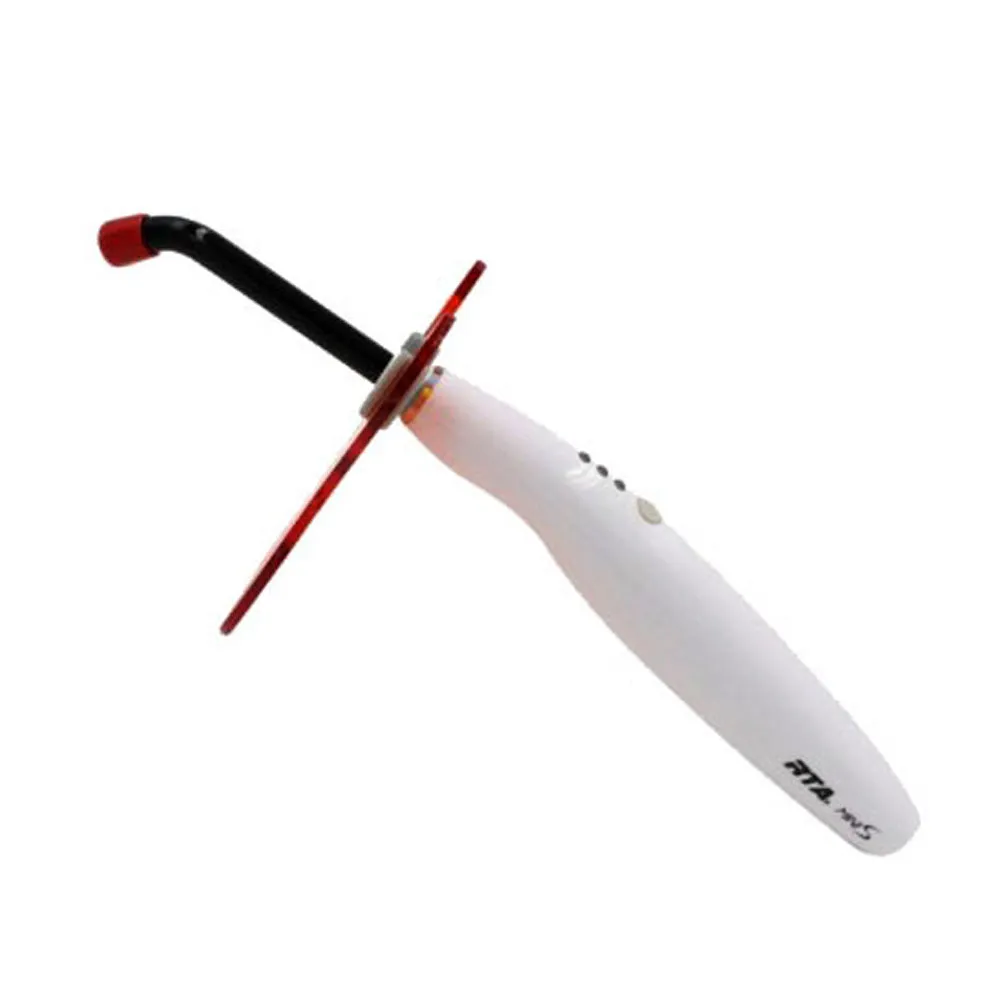

MINI LIGHT CURE UNIT

• Net weight: 105g
• Dimensions: 230mm×26mm×30mm
• Power input: AC100V-240V 50Hz/60Hz
• Light output: 1000mW/cm² -1200mW/cm²
• Battery: 3.7V/1400mAh
• Battery mode: ICR 18490
• Power Output: DC4.2V/1A
• Wavelength: 420nm-480nm
• Light intensity: 1000mW/cm²-1200mW/cm²
• Light effective acreage: 50mm²

• 1 x LED curing light
• 1 x Guide rod tip
• 1 x Light slides
• 1 x Power adapter
• 1 x Lithium battery
• 1 x Operating manual
• 1 x Guarantee card

• Ensure that the MiniS curing light is fully charged before use.
• Press the button on the main unit to turn on the curing light. The blue light will indicate that the device is in operation.
• Long press the button to access the time setting mode. The time indicator will start flashing. Choose the desired time mode (5s, 10s, or 20s) by releasing the button when the indicator reaches the desired setting.
• Aim the blue light at the area that requires resin solidification.
• Short press the button to start the curing process. The main unit will emit a “Bi” sound, and the blue light will radiate, indicating that the solidification process has begun based on the selected time mode.
• The countdown timer will start, and the light will continue to emit blue light until the set time elapses.
• To stop the curing process at any time, simply short-press the button again.
• After each working cycle, you can initiate another cycle by short pressing the button. If the equipment becomes noticeably hot, allow it to cool down before restarting. It is recommended to limit continuous working cycles to less than 10 times.
• The main unit has a low-power detection circuit. If low power is detected, the display screen will blink or the buzzer will ring three times. Recharge the device promptly.
• To charge the battery, connect the adapter’s plug to a power supply and connect the output plug to the main unit’s input plug. The adapter’s charge indicator will change color to indicate the charging status.
• Clean the optical fiber with a soft cloth after each use to maintain its performance.

• Country of Origin: PRC
• Manufacturer: Woodpecker

• Manufacturer/Importer Warranty of 1 Year on all the parts of the product & 5 years Warranty (from the date of invoice) on PCB (Power Circuit Board).
• Physical damage is not cover in any case
• Service and Warranty are handled by the manufacturer/importer directly for this product

• Supreme Dental will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Supreme Dental and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Supreme Dental may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.
