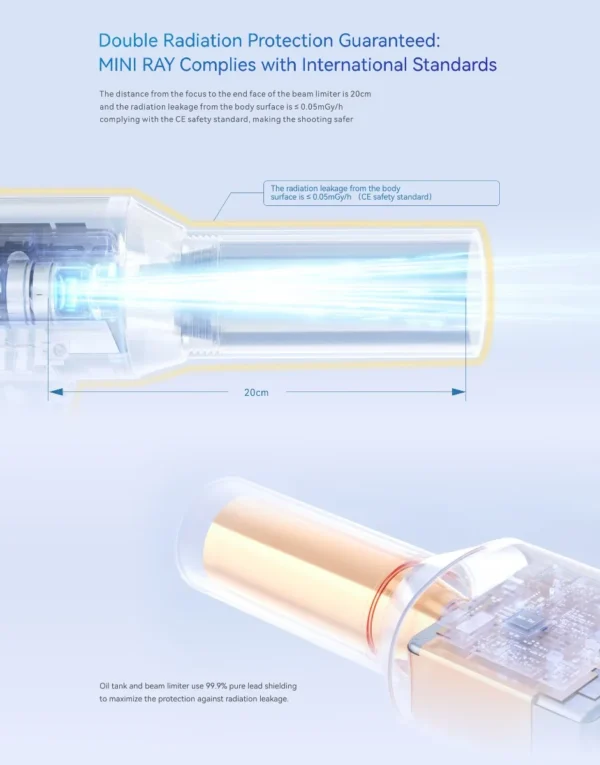

Radiation Protection:

• Complies with international standards.
• Radiation leakage ≤ 0.05mGy/h (CE safety standard).
• 99.9% pure lead shielding in the oil tank and beam limiter.

Efficient Shooting:

• 50k tube wattage for enhanced penetration.
• 2mA tube current for precise exposures.
• 140W output power for diverse clinical needs.

Powerful “CHIP” Technology:

• Advanced chip for stable output.
• Mitigates low battery impact on image quality.

Long-lasting Battery:

• 1800ml x 35 lithium battery.
• 506 shots on full charge.
• 2-hour fast full charge.

Accurate Imaging Sensor:

• USA angle sensor for real-time display.
• Shooting angle calibration based on posture.

Durable Build:

• 60,000+ exposure times.
• High-frequency X-ray tube for extended service life.

Focused Imaging:

• 0.4mm focus for clear high-resolution images.

User-Friendly Design:

• 2.8″ HD digital screen.
• Intuitive interface, ultra-sensitive buttons.
• Compact and lightweight for one-hand operation.

Adaptable to Diverse Needs:

• Two target groups: Child/Adult.
• Three device options: Sensor/Scanner/Film.
• Five tooth position options.

Upgraded Safety Measures:

• Fast screen lock to prevent false touch.
• High-pressure and high-temperature protection.
• Automatic exposure command cancellation.

High-frequency DC Machine:

• Superior performance, stable X-rays.

Mini Portable X-ray with advanced imaging and safety for precise diagnostics.

Model: Mini Ray
Power adapter input: ~100-240V 50/60Hz 800mA
Internal power supply: DC 10.8V
Types of radiation: X-ray
Dimension: 338mm×112mm×247mm
Tube voltage: 70kV
Tube current: 2mA
Battery capacity: 2500mAh 3S
Weight: 2.2Kg
Atmospheric pressure: 70kPa ~ 106kPa
Electric power:
Maximum power: 0.14kw(70kV, 2mA)
Nominal electric power: 0.14kw(70kV, 2mA, 0.1s)

• 1 x Mini Ray Portable X-Ray Machine
• 1 x Power Adapter & Cable
• 1 x User Manual

Power On/Off:

• Ensure the device is charged.
• Press and hold the power button to turn it on/off.

Select Patient Type:

• Choose between Child and Adult modes based on the patient.

Choose Imaging Mode:

• Select the desired imaging mode: Sensor, Scanner, or Film.

Set Tooth Position:

• Pick the tooth position option: Molar, Premolar, Incisor, Canine, or Bite-wing.

Position the Device:

• Place the Mini Ray at the appropriate distance from the target area.

Adjust Shooting Angle:

• Use the USA angle sensor for real-time angle display.
• Calibrate the shooting angle based on patient posture.

Focus Adjustment:

• Ensure the 0.4mm focus is aligned for clear, high-resolution images.

Review Safety Measures:

• Confirm the fast screen lock is activated to prevent false touches.
• Be aware of high-pressure and high-temperature protection features.

Initiate Exposure:

• Press the exposure button to capture the X-ray image.

Review Image:

• Check the 2.8″ HD digital screen for the captured image.
• Ensure image quality meets expectations.

Power Management:

• Monitor battery level regularly.
• Recharge promptly using the provided charger when needed.

Shutdown:

• After use, power off the Mini Ray and store it in a secure location.

• Country of Origin: PRC
• Manufacturer: Woodpecker

• Manufacturer/Importer warranty of 4 years as applicable for this product.
• Service and Warranty are handled by the manufacturer/importer directly for this product
• Dentalkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Dentalkart and the Buyer acknowledge that the Products purchased/used are a subject matter of the original Manufacturer/Importer’s warranties only
• Any or all claims about returns and replacement shall be made to the concerned Manufacturer/Importer only and Dentalkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.
