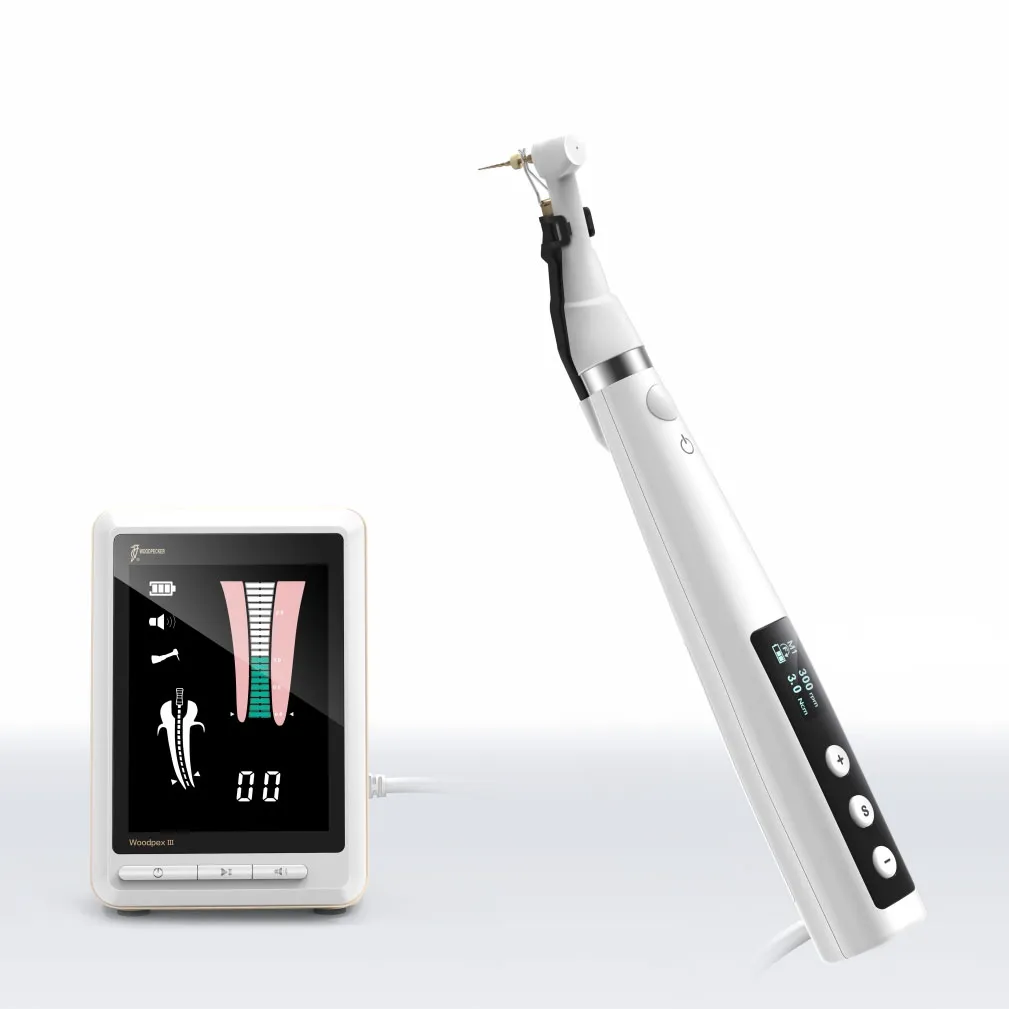

E-COM plus cordless endo motor is mainly used to revolutionize endodontic treatment, this cutting-edge device offers a range of features and benefits that will take your practice to the next level.The Ecom Plus is a versatile and advanced device specifically engineered for root canal preparation procedures. Its primary function is to mold and clean the root canal, ensuring optimal treatment outcomes. With its state-of-the-art technology and user-friendly design, this device is set to transform the way dentists approach endodontic treatments. One of the standout features of the Ecom Plus is its seamless integration with a matched Apex locator. This allows for real-time monitoring of the file tip position during the procedure, enhancing accuracy and precision. With automatic functions like Auto Apical Reverse, you can achieve efficient and reliable results, all while streamlining your workflow.

The wireless handpiece of the E-com Plus Cordless Endomotor provides unmatched convenience and flexibility. Say goodbye to tangled cords and limited movement. With the freedom to move around the operatory, you can focus on providing optimal care to your patients without any hindrances. Experience a new level of comfort and control during procedures with the E-com Plus Cordless Endomotor. Equipped with real-time feedback technology and dynamic torque control, this device minimizes the risk of complications and prevents needle breakage. You can perform treatments confidently, knowing that the E-com Plus Cordless Endomotor has your back. With up to 9 user-defined modes at your disposal, you can easily switch between settings that suit your preferences and optimize your workflow.

Mode Type

• Auto Mode
• Manual Mode
• Reciprocation Mode
• Apex Locate Mode
• Memory Mode
• Endo Stop Mode
• Torque Reverse Mode
• Auto Apical Reverse Mode
• Program Reset Mode

Cordless Endomotor with 9 user-defined modes

• Battery (Lithium battery in handpiece) – 3.6V /750mAh
• Power adapter – Input( ~100V-240V 50Hz/60Hz 0.4A Max) and Output (DC5V/1A)
• Torque – 0.6Ncm-5.0Ncm
• Speed – 100rpm~1000rpm
• Environment temperature – +5℃ ~ +40℃
• Relative humidity – 30% ~ 75%
• Atmospheric pressure – 70kPa ~ 106kPa
• Contra angle gear ratio – 1:1

• 1 x Endomotor Unit
• 1 x Charging Unit
• 1 x Power Adapter
• Instructional Manual

Preparing the Device:

• • Ensure that the E-Com Plus Cordless Endomotor is fully charged or connected to a power source according to the manufacturer’s instructions.
  • Attach the appropriate contra-angle to the motor handpiece securely.
  • Place the handpiece on the charging base when not in use to maintain battery life.

Powering On and Selecting Modes:

• • Press the power button on the handpiece or control panel to turn on the E-Com Plus Cordless Endomotor.
  • Use the interface or control buttons to navigate through the available modes and select the desired mode for the procedure. Refer to the user manual for specific mode descriptions and indications.

Adjusting Speed and Torque Settings:

• • Once the mode is selected, use the control buttons to adjust the speed and torque settings to the desired levels. Start with lower settings and gradually increase if necessary.
  • Refer to the user manual for recommended speed and torque settings based on the procedure and file compatibility.

File Installation and Removal:

• • Follow the provided instructions to install the endodontic file securely into the contra-angle.
  • To remove the file, release any locking mechanism and gently pull the file out of the contra-angle.

Performing the Procedure:

• • Hold the E-Com Plus Cordless Endomotor comfortably and ensure a firm grip.
  • Position the endodontic file at the treatment area (root canal) while maintaining proper visibility.
  • Activate the device using the appropriate control button, and gently guide the file into the canal, following the recommended techniques for root canal preparation and cleaning.

Monitoring and Adjusting:

• • Pay close attention to the movement and progress of the file within the canal.
  • Observe the real-time feedback displayed on the OLED screen, such as battery consumption, speed, torque, and program sequence.
  • Adjust the speed and torque settings as needed to ensure safe and efficient operation.

Caution and Safety:

• • Exercise caution during the procedure to avoid excessive pressure or force that could lead to file breakage.
  • If excessive heating occurs or if any abnormal conditions are observed, stop the procedure immediately and seek professional assistance.
  • Follow all safety precautions and warnings provided in the user manual to ensure safe and effective use.

Concluding the Procedure:

• • Once the procedure is completed, deactivate the E-Com Plus Cordless Endomotor by pressing the power button or following the manufacturer’s instructions.
  • Remove the endodontic file from the canal carefully.
  • Clean and sterilize the contra-angle and other reusable components according to the provided instructions.

• Country of Origin: PRC
• Manufacturer: Woodpecker

• Manufacturer/Importer warranty of 1 Year against manufacturing defect
• Service and Warranty are handled by the manufacturer/importer directly for this product

• Supreme Dental will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Supreme Dental and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Supreme Dental may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.
