• Dynamic torque control prevents needle breakage.
• Cordless design for flexible and easy use.
• Versatile compatibility with various file systems.
• Clear OLED screen for real-time feedback.
• Nine user-defined modes for personalized settings.
• Nimble autoclavable contra-angle for infection prevention.
• Imported motor for strong power and efficiency.

• Power Source: Lithium Battery (3.6V / 750mAh)
• Torque: 0.6Ncm-5.0Ncm(6mNm ~ 50mNm)
• Screen Type: All-Angle OLED
• Contra-angle Gear Ratio: 1:1
• User Modes: 9 Customizable Modes
• Contra-Angle Features: Autoclavable, Adjustable Angle
• Motor Type: Imported (15.5:1 Reduction Ratio)
• Operating Environment: +5°C to +40°C, 30% to 75% humidity
• Storage Environment: -20°C to +55°C
• Sterilization: Autoclavable Contra-Angle
• Power Adapter: Input( ~100V-240V 50Hz/60Hz 0.5-0.2A Max) and Output (DC5V/1A)
• Environment Temperature: +5℃ ~ +40℃
• Atmospheric Pressure: 70kPa ~ 106kPa
• Rotate speed: 100rpm~1000rpm

Note: The handpiece cannot be autoclaved. Use disinfectant of neutral pH value or ethyl alcohol to wipe its surface.

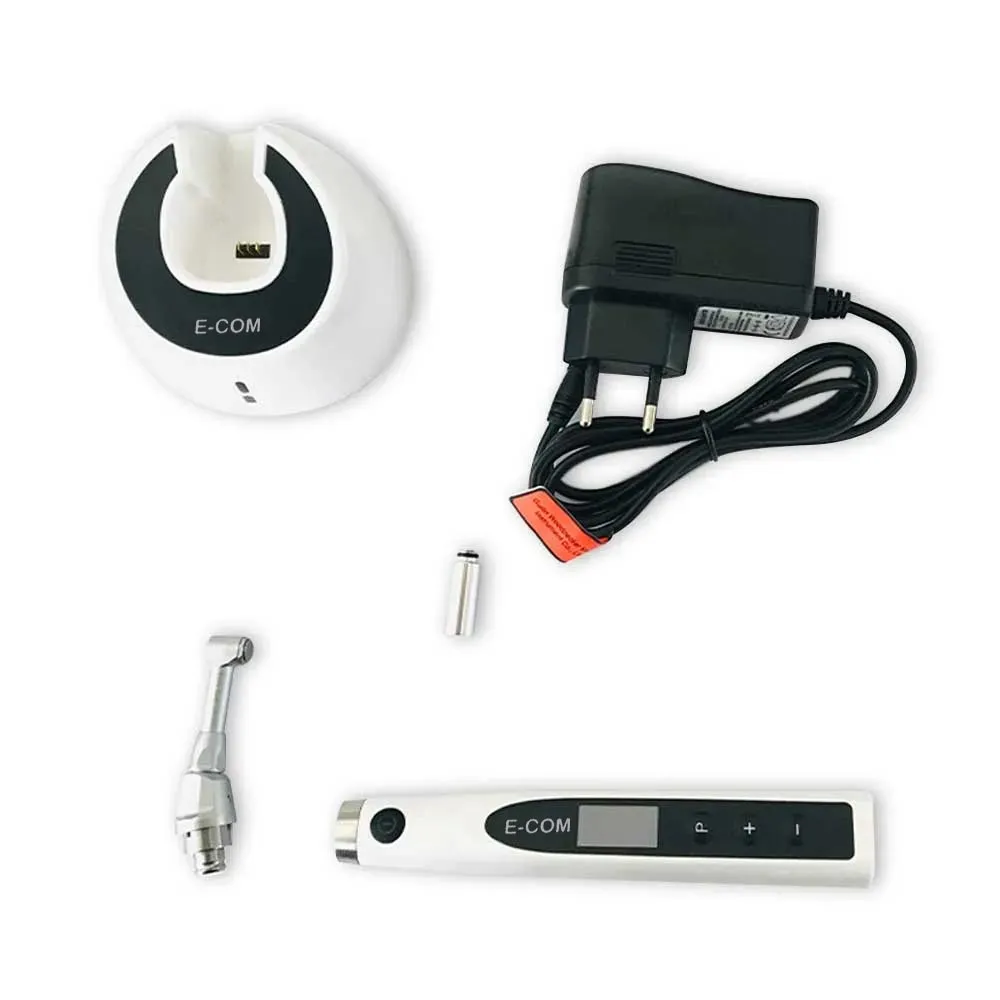

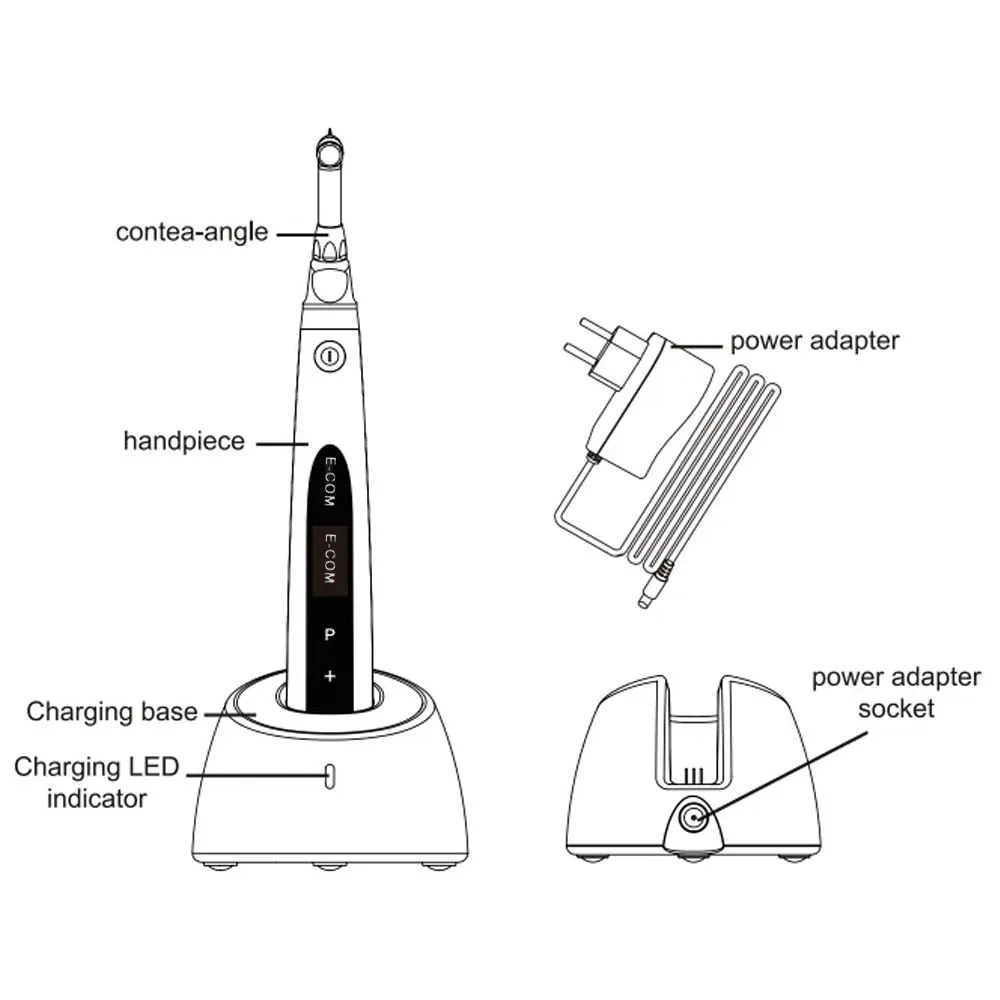

• 1 x Motor Handpiece
• 1 x Contra-angle
• 1 x Charging base
• 1 x Lubricator
• 1 x Power adapter
• Instructional Manual

Power On/Off:

• Press the key to power on.
• Long press setting key for 2s to power off.

Mode Selection:

• Press key or key to switch between modes.
• Long press for fast mode handover.

Memory Mode:

• Press key or key to select from 9 user-defined modes.

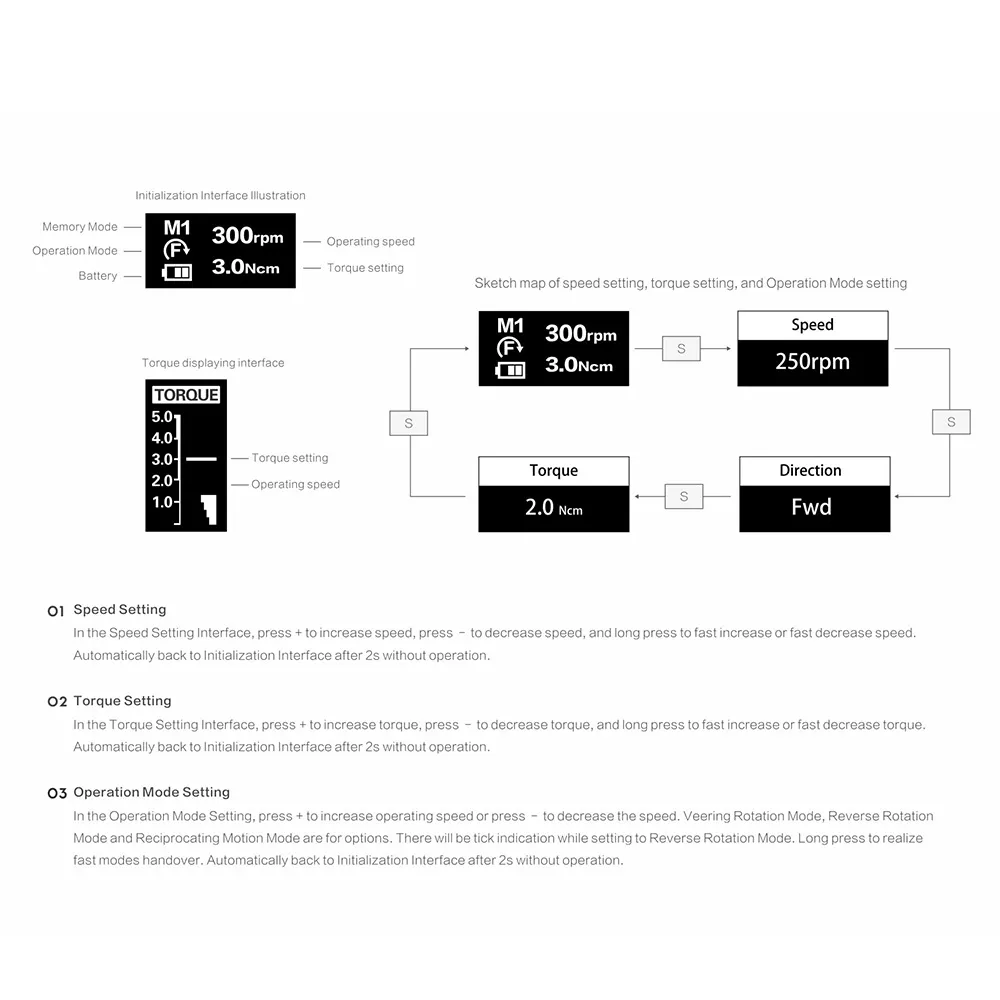

Speed Setting:

• In Speed Setting Interface:
• Press + to increase speed.
• Press – to decrease speed.
• Long press for fast adjustments.

Torque Setting:

• In Torque Setting Interface:
• Press + to increase torque.
• Press – to decrease torque.
• Long press for fast adjustments.

File Installation:

• Before starting, plug the file into the contra-angle.
• Slightly screw the file while pressing the contra-angle cover.

File Removal:

• Press the contra-angle cover and pull out the file.

Charging:

• Connect the power adapter to the base.
• Place the handpiece in the base.
• Charging indicator turns yellow (charging) or green (fully charged).
• Unplug after charging.

Contra-Angle Calibration:

• Long press setting key, then long press for 2s.
• Wait for successful calibration interface.

Automatic Torque Calibration:

• Choose Torque Calibrating mode.
• Reduces torque fluctuation after sterilization or replacement.

Oiling of Contra-Angle:

• Use original oil injection nozzle.
• Grease contra-angle for 2-3s.

Cleaning and Sterilization:

• Follow the step-by-step cleaning and sterilization procedure in the manual.
