Woodpecker Apex Locator Woodpex III

Fifth-generation apex locator

Check Availability At

Please enter PIN code to check delivery time & Pay on Delivery Availability

Enter the pincode to enable Add to Cart.

Price:

8,500.00

Brand:

Woodpecker

  • Sound changes indicate file position in the root canal.
  • Measurement independent of file thickness.

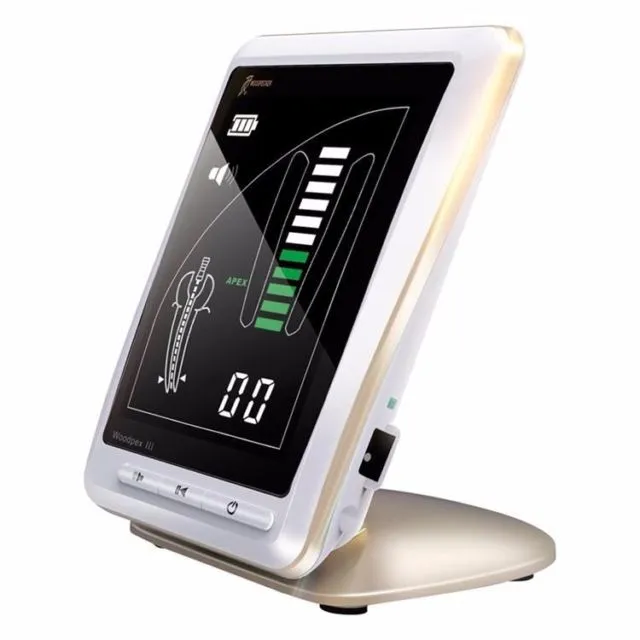

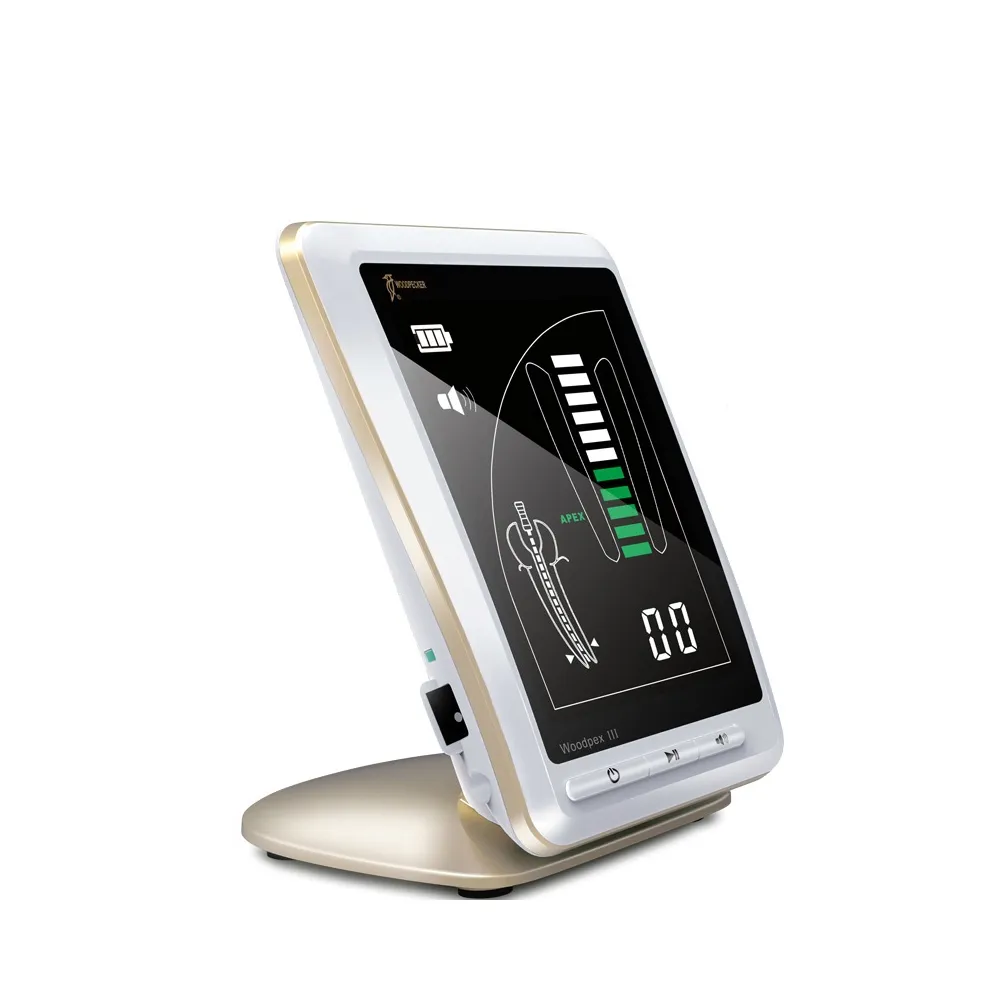

  • Clear bright LCD display with color-coded trajectory indication.
  • Advanced multiple frequency network impedance measurement for accurate results.
  • Autoclavable accessories for effective cross-infection prevention.
  • Rechargeable battery for convenient and cost-effective use.
  • Folding design for easy adjustment of visual angle.

Fifth-generation apex locator

  • Battery: 3.7V/750mAh
  • Adapter: 100V – 240V 501-Iz/60Hz
  • Power consumption: 50.5W
  • Screen: 4.5″ LCD
  • Buzzer alert: The buzzer will alert when the endo file is less than 2mm to the apex
  • Environment temperature: +5°C to +40:C
  • Relative humidity: 580%
  • Atmosphere pressure: 50kPa to 106kPa
  • Main unit net weight: 336g
  • Main unit gross weight: 360g Unit
  • Dimension: 195mm x 137mm x 123mm

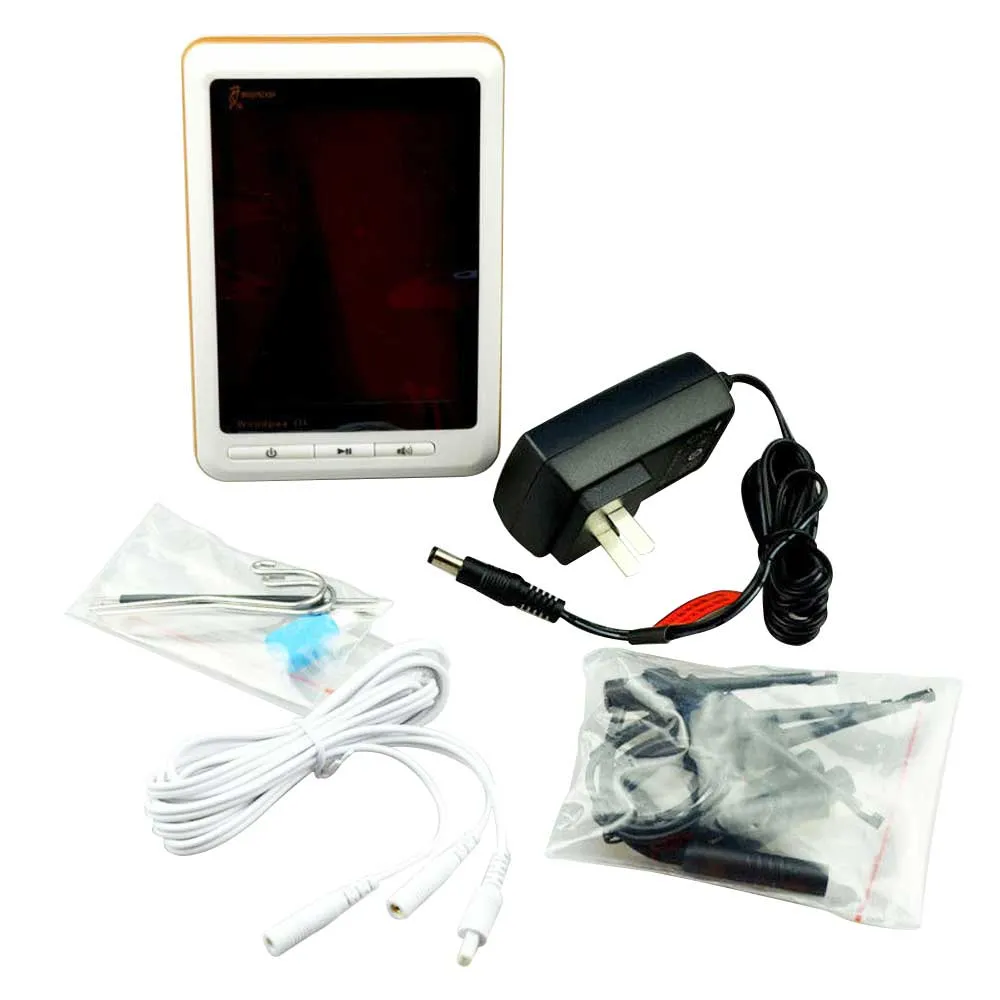

  • 1 X Main Unit
  • 1 X Measuring Wire
  • 2 X File Clip
  • 2 X Lip Hook
  • 2 X Measuring File
  • 1 X Adapter
  • 1 X Tester
  • 1 X Battery
  • 1 X Instruction Manual
  • 1 X Qualified Certificate
  • 1 X Warranty Card
  • 1 X Packing List

Preparation:

  • Ensure the device is fully charged before use.
  • Autoclave reusable accessories (measuring wire, file clip, lip hook) for hygiene.

Powering On the Device:

  • Press the power button on the main unit to turn on the Woodpex III Gold.

Setting up the Measurement File:

  • Attach the measuring file to the file clip securely.
  • Connect the measuring wire to the file clip.

Locating the Apex:

  • Isolate the tooth with a dental dam.
  • Apply conductive gel to the measuring file’s tip.
  • Gently insert the measuring file into the root canal until resistance is felt.
  • Advance the measuring file slowly while observing the LCD screen.

Interpreting the Measurement:

  • Pay attention to the length measurement indicator and color display.
  • Adjust file position based on displayed colors.

Alert Function:

  • Be cautious when the buzzer alert sounds (file less than 2mm from the apex).

Powering Off the Device:

  • Press and hold the power button to shut down the Woodpex III Gold.

Cleaning and Storage:

  • Clean accessories with a disinfectant solution after each use.
  • Store the device in a clean and dry environment.
  • Country of Origin: PRC
  • Manufacturer: Woodpecker
  • Manufacturer/Importer warranty of 1 year as applicable for this product, 5 year warranty on PCB (Power Circuit Board)
  • Service and Warranty are handled by the manufacturer/importer directly for this product (Currently OnSpot Services only available in Delhi/NCR )
  • Supreme Dental will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
  • Supreme Dental and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
  • Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Supreme Dental may assist the customer in registering a request to get the Product replaced or serviced.
  • The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

FAQs

Answer: Yes, the cord for the Woodpecker Apex Locator Woodpex III is available. You can find it by searching for “Woodpecker Apex Locator Accessories” on our website, where you’ll be able to view and purchase the required accessories.

Answer: Yes, the Woodpecker Apex Locator Woodpex III requires charging. It comes with a rechargeable battery, ensuring uninterrupted usage during endodontic procedures. Regular charging is necessary to maintain optimal performance and reliability.

Answer: The Woodpecker E-Com Endomotor is not designed to be attached to any apex locator. However, the Woodpecker E-Com Plus Endomotor model is compatible with this apex locator.
