• B type front-loading autoclave with triple Vacuum cycle.

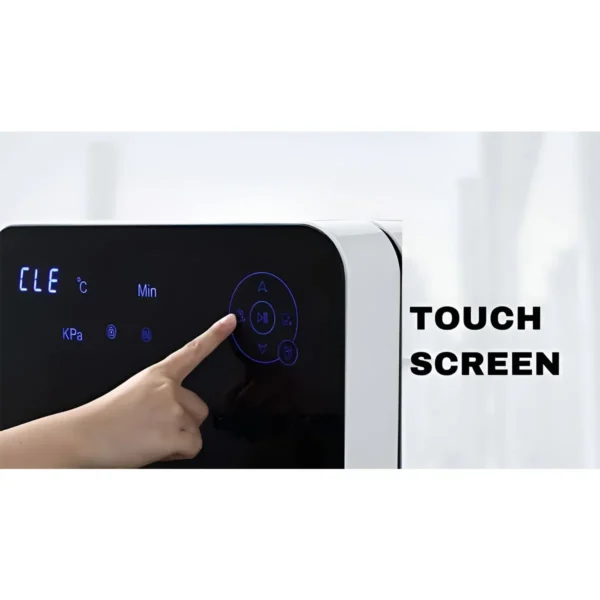

• Friendly operation interface, simple and easy.
• B & D test to check the temperature penetration capacity of the sterilizer and Leak test to monitor whether there is leakage.
• 3 temperature selection : 121⁰ C , 134⁰ C & B+
• Sterilization of unwrapped/wrapped, solid/hollow, porous/non-porous instruments can be done.
• Step button to select a date, month, year and time to store the sterilization cycle.
• 2 separate water tanks available: Distilled water with 3.5litre capacity and waste-water tank with 5litre capacity.
• The cooling condenser in the waste-water tank to reduce the water temperature and prevent deformation of the tank.
• Water quality check sensor in the distilled water tank available.
• An optional Printer is available.
• Double door lock system i.e. airlock & mechanical lock to prevent potential damage.
• B+ cycle in 134⁰ C temperature and sterilization holding time of 18 min for effective sterilization of Implant Kits.

Front-loading B autoclave: triple vacuum, easy operation, B+ cycle, safety features

•  Voltage – AC – 220 V+/-10%
•  Frequency – 50/60Hz
•  Wire Plug – GB 3 Cores/EN 3 Cores
•  Max HP – 1800 VA
•  Electric Current – 10A
•  Physical Space – 23L
•  Class – Class B Standard
•  Sterilizing Temperature – 121°C, 134°C
•  Dry Procedure – Strong vacuum drying
•  Chamber Size – 249mm*450mm
•  Weight – 50 KG

• 1 x Autoclave
• 1 x Dram
• 1 x Power Cable

Setup:

• Ensure the autoclave is properly connected to a power source according to the specified voltage and frequency.
• Check the water levels in both the distilled water and waste water tanks. Fill or empty them as needed.

Preparation of Instruments:

• Ensure that the instruments to be sterilized are properly cleaned and arranged according to the guidelines provided.

Power On:

• Turn on the autoclave using the designated power switch.

User Interface:

• Use the friendly operation interface to select the desired sterilization cycle, temperature, and any other relevant parameters.

Date and Time Selection:

• If applicable, use the step button to set the date and time for recording sterilization cycles.

Loading Instruments:

• Load the instruments into the autoclave chamber according to the guidelines provided in the user manual. Ensure proper arrangement for effective sterilization.

Close Doors and Initiate Cycle:

• Close both doors securely, engaging the double door lock system.
• Initiate the sterilization cycle as per the selected parameters.

Monitoring:

• Monitor the autoclave during the cycle to ensure it operates without issues. Some autoclaves provide displays or indicators for progress.

Completion:

• Once the sterilization cycle is complete, wait for the autoclave to cool down before opening the doors.

Post-Sterilization:

• Carefully remove sterilized instruments, avoiding contamination.
• Perform any additional steps recommended for the specific autoclave model.

Regular Cleaning:

• Follow the recommended cleaning procedures outlined in the user manual.

Water Tank Maintenance:

• Regularly check and clean the distilled water and waste-water tanks. Refill or empty them as needed.

Safety Tests:

• Periodically perform B & D tests and leak tests as recommended by the manufacturer.

Printer (if applicable):

• If using the optional printer, review and maintain the documentation as needed.
