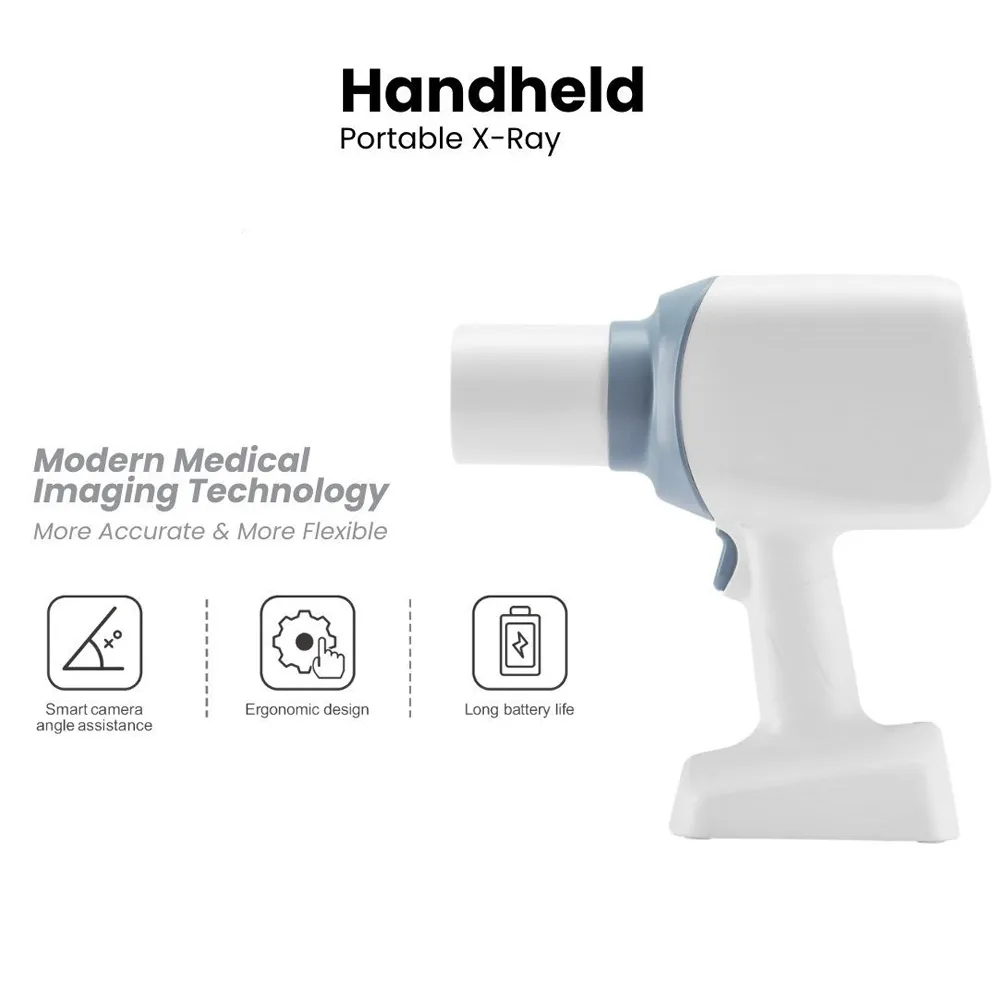

• Smart Angle Assistance: Enables precise camera angle adjustments for optimal image capture

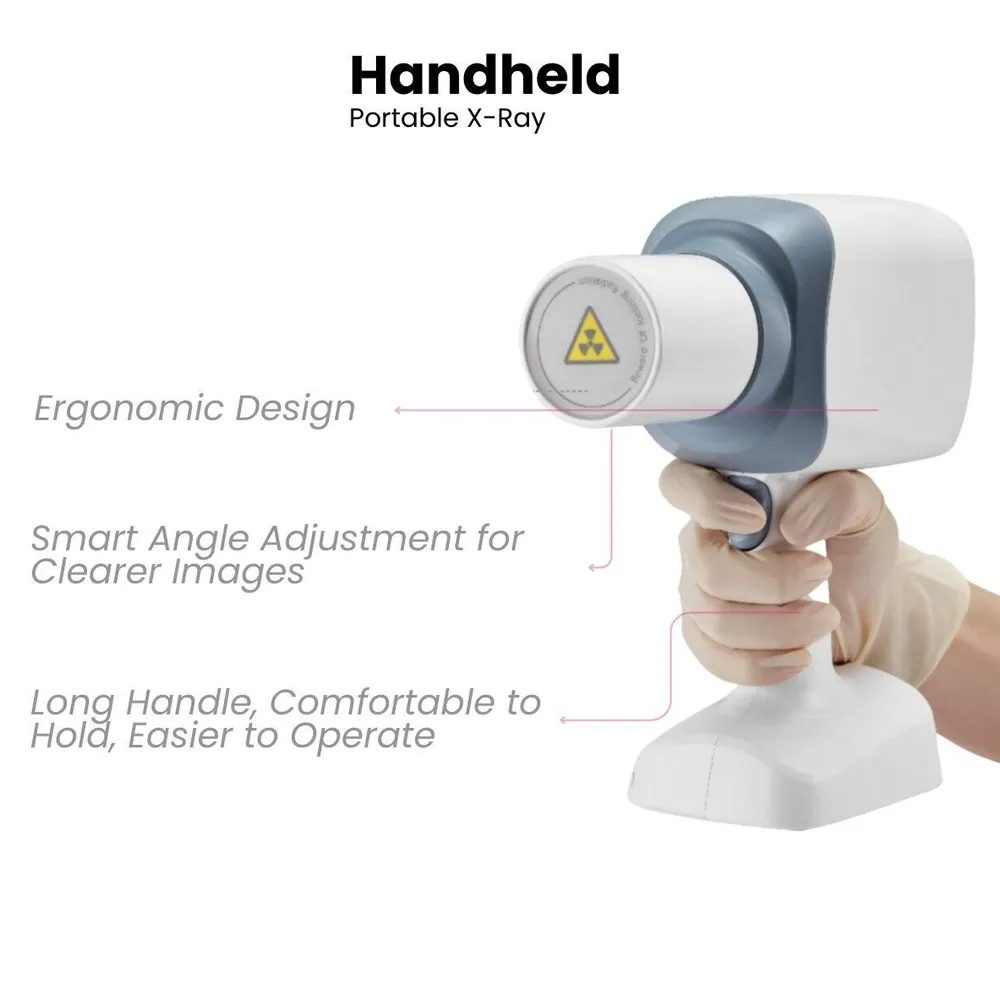

• Ergonomic Design: Comfortable to hold, reducing operator fatigue during extended use
• Long Battery Life: Extended operation time allows for up to 150 X-ray shots on a single charge

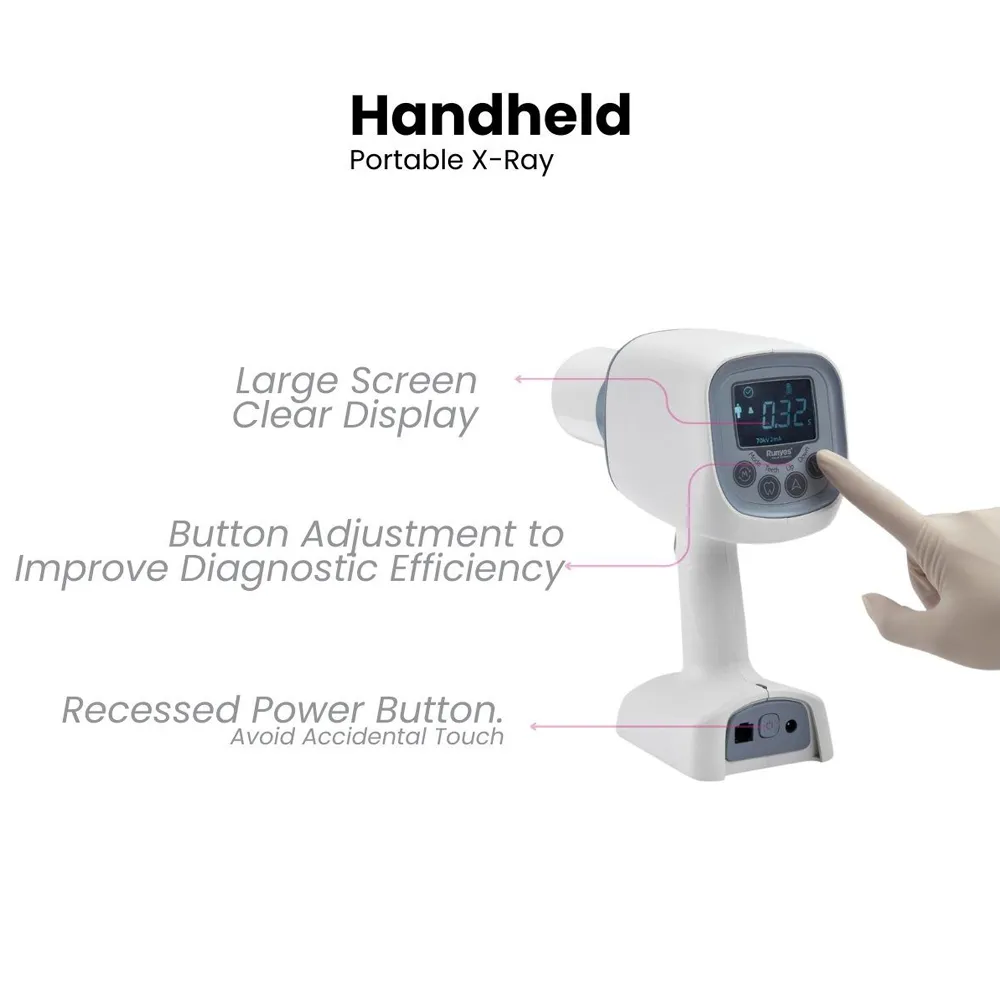

• Large Screen Display: Clear and easy-to-read diagnostic data for efficient analysis
• Button Adjustment for Efficiency: Optimized button placement enhances usability and workflow
• Recessed Power Button: Prevents accidental activation, ensuring safe operation
• Compact & Sleek Design: Lightweight and portable, ideal for mobile use or clinics with limited space
• Durable Construction: Built with high-quality materials for longevity and consistent performance
• Low Radiation Emission: Maintains safety with leak emissivity at ≤ 0.25mGy/h at 1 meter

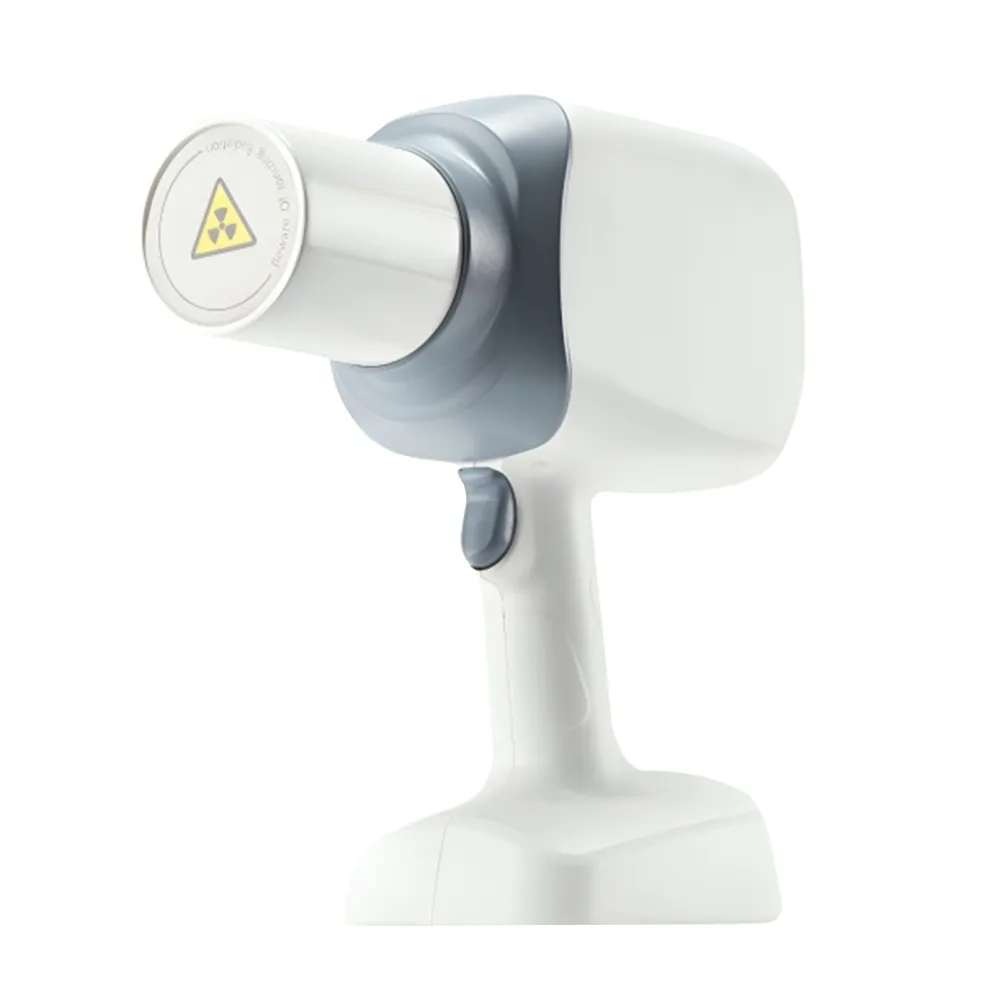

Portable dental X-ray machine gun type offers an ergonomic design and high-quality imaging for efficient diagnostics

• Model: Ray98 P (Gun Typ)
• Tube Voltage: 70kV ± 10%
• Tube Current: 2mA/220V
• Input Voltage: 110V/240V
• Frequency: 50Hz/60Hz
• X-Tube: Canon (Toshiba)
• Anode Angle: 12.5°
• Focus: 0.4mm
• Exposure Time Range: 0.4s – 2.0s
• Leak Emissivity: 1 meter ≤ 0.25mGy/h
• Machine Weight: 1.7kg
• Relative Humidity: 30RH% – 75RH%

• 1 x Portable X-Ray (gun type)
• 1 x Extension Cone
• 1 x Bag
• 1 x Power Adapter
• 1 x Power Cable
• 1 x Manual

• Preparation: Ensure the machine is fully charged or plugged in. Check that all components are clean and sterile
• Power On: Long press the recessed power button to turn on the machine. Wait for the display to show all icons briefly
• Select Settings: Use the mode key to select the appropriate shooting mode (e.g., adult or child). Adjust the exposure time using the up and down buttons to set it according to the diagnostic needs.
• Angle Adjustment: Utilize the smart angle assistance feature to adjust the camera angle for optimal positioning
• Positioning: Position the X-ray cone at the desired angle towards the area of interest in the patient’s mouth
• Take Exposure: Press the exposure button once to initiate a countdown (e.g., 60 seconds). To cancel, press any of the function keys
• Complete Exposure: Long press the exposure button for three seconds during the countdown to take the X-ray. After exposure, wait for the cooling indicator to ensure safe operation
• Review Data: Check the large screen display for diagnostic data and ensure clarity of images
• Power Off: After use, long press the power button to turn off the machine
• Post-Use Care: Clean and store the device properly, ensuring it is ready for future use

• Country Of Origin: PRC
• Manufacturer: Runyes Medical Instrument Co., Ltd.

• Manufacturer/Importer warranty for Runyes Portable Dental X-Ray Machine 1 year and as applicable for this product.
• Service and Warranty are handled by the manufacturer/importer directly for this product

• Dentalkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Dentalkart and the Buyer acknowledge that the Products purchased/used are a subject matter of the original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Dentalkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or does not tamper as the case may be.
