• Auto-reverse function
• Compact desktop unit
• Large LCD screen provides clear visibility
• Simple-to-operate Flat Control Panel
• Dual Power Source: AC or Battery Operation
• Slim and light handpiece
• 2-Way ON/OFF switch
• Number of Programs: 9

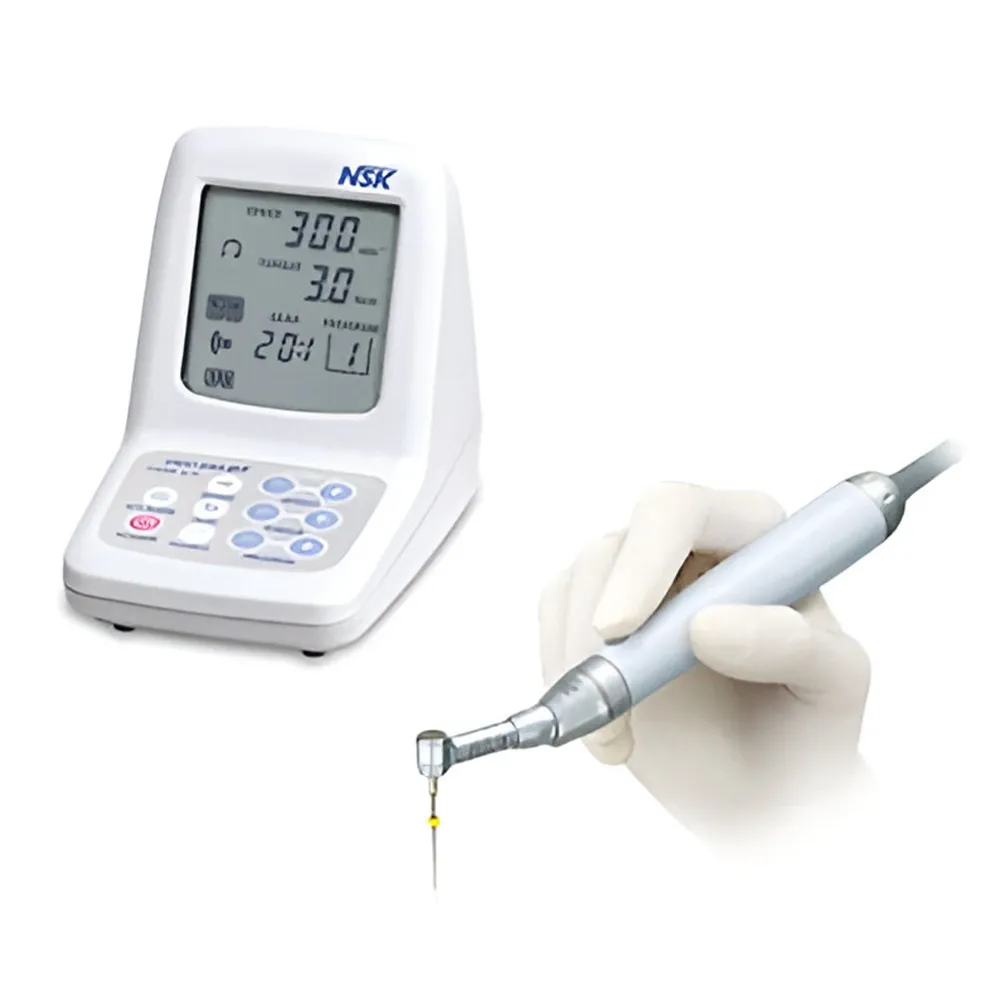

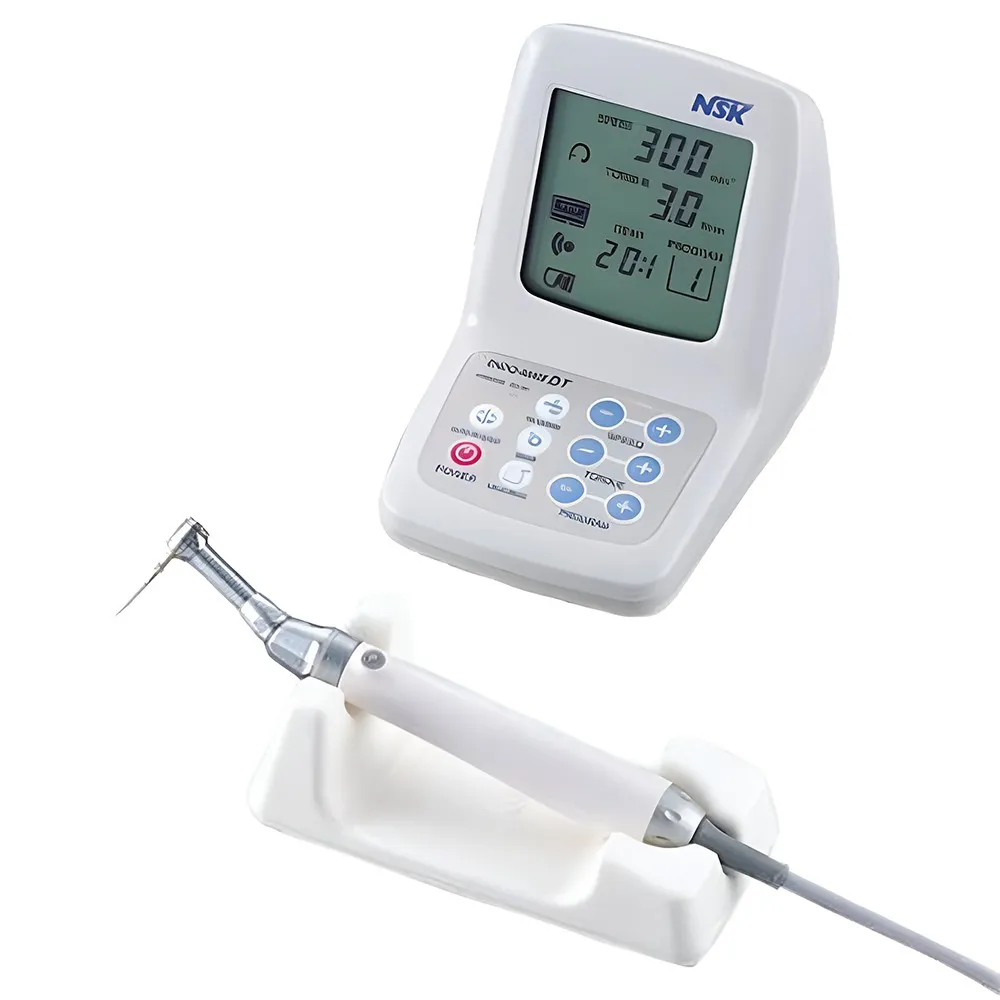

ENDO-MATE DT Endomotor with MP-F16R contra angle head (16:1)

• Torque control from 0.3 to 3 Ncm
• Speed range: 140 – 550 min
• Dimensions : W92 x D148 x H124 (mm)
• Weight: Unit 456g/Motor handpiece & cord 92g
• Power Supply :- AC120V 60 Hz or 230V 50/60 Hz and Battery Pack

• 1 X Control Unit
• 1 X Motor And Cord
• 1 X Handpiece Stand
• 1 x Contra Angle Handpiece (16:1)
• 1 X AC Adaptor

• Power Connection: Ensure the device is turned off. Connect the AC adaptor to the control unit and confirm that the AC IN lamp lights up, indicating the power supply.
• Preset Memory: Program your desired speed and torque settings into the preset memory. This can be done by selecting the desired settings and pressing the MEMORIZE key. You can store up to 9 different settings.
• Power On/Off: To turn on the device, press and hold the POWER key for more than one second. Briefly pressing the POWER key again will stop the motor handpiece. For intermittent operation, keep the POWER key pressed while the handpiece is running and release it to stop.
• Speed and Torque Adjustment: Fine-tune the rotation speed using the SPEED key and adjust the torque limit value using the TORQUE key.
• Rotational Direction: Select the desired rotational direction by pressing the REVERSE key. Each press of the key alternates between forward rotation and reverse rotation.
• Auto Reverse Function: The AUTO REVERSE key allows you to activate the auto-reverse mode. Press the key to cycle between [AUTO REVERSE AUTO STOP] and [AUTO REVERSE OFF] modes.
• Connecting Contra Angle Head: Align the positioning pins of the contra-angle head with the positioning slots of the motor handpiece. Insert the head until it clicks into place. To remove the head, pull it out axially.
• Mounting and Removing Files: Mounting the file involves inserting it into the chuck until it stops and lightly turning it until it engages with the latch mechanism. Push it inward to click. To remove the file, depress the push button and pull it out.
• Calibration: Calibration helps reduce fluctuation in rotation speed and torque. Lubricate the contra-angle head, turn off the power, connect the AC adaptor, and turn on the power. Simultaneously hold down both SPEED buttons for more than one second.
• Battery Refresh: Battery refresh helps resolve the “memory effect” in Ni-MH batteries. Turn off the power, connect the AC adaptor, and hold down the POWER key while pressing the REVERSE key.

• Country Of Origin: JAPAN
• Manufacturer: NSK

• Manufacturer/Importer warranty of 1 Year against manufacturing defect
• Service and Warranty are handled by the manufacturer/importer directly for this product

• Supreme Dental will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Supreme Dental and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Supreme Dental may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.
