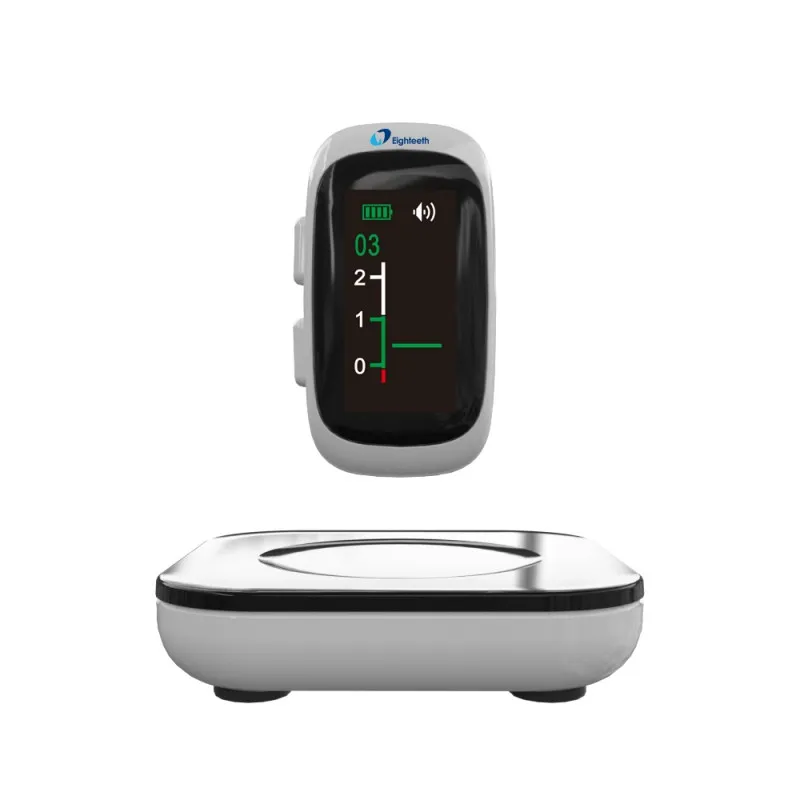

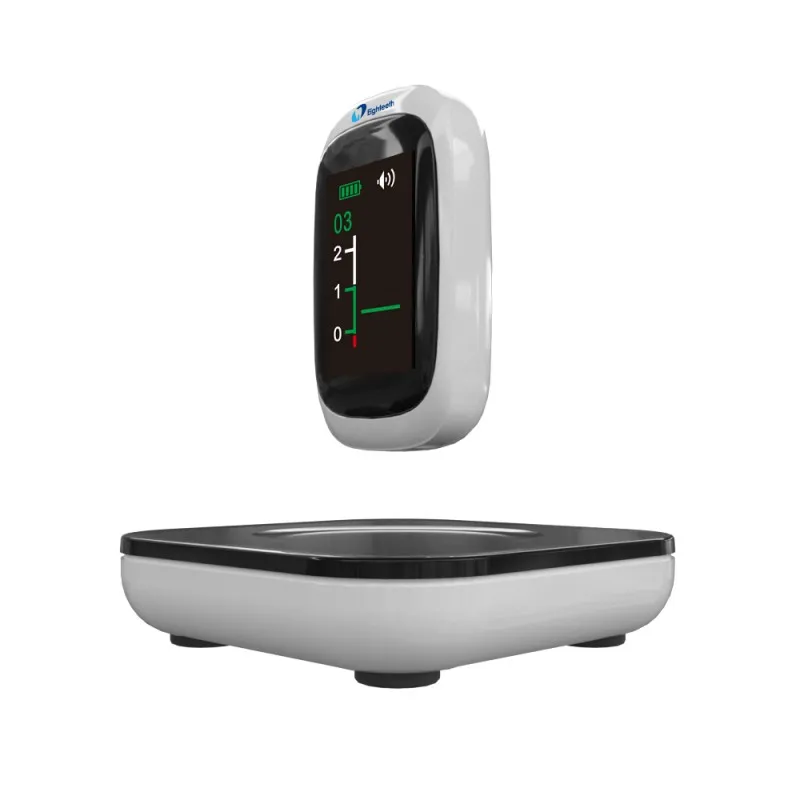

Miniature apex locator with wireless charging for determination of accurate working length

• Model:- AirPex
• Dimensions:- 132mm x 113mm x 78mm (Outer box) (Sterlization for Lip Clip &File clip)
• Weight:- 0.35kg±10%
• Battery:- Lithium-ion battery: DC 3.7V 110mAh
• Charger power supply:- AC 100-240 V, ±10%
• Charger power output:- 5V 1A
• Frequency:- 50/60Hz, ±10%
• Power rating:- ＜1W
• Degree ofprotection:- IPX 0
• Electrical safety class:- Class I

STERILIZATION:

• Steam sterilization at 134°C at least 6 minutes.
• Minimum drying time after sterilization: 10 minutes.

STORAGE:

• Keep the components in sterilization packaging in a dry and clean environment.

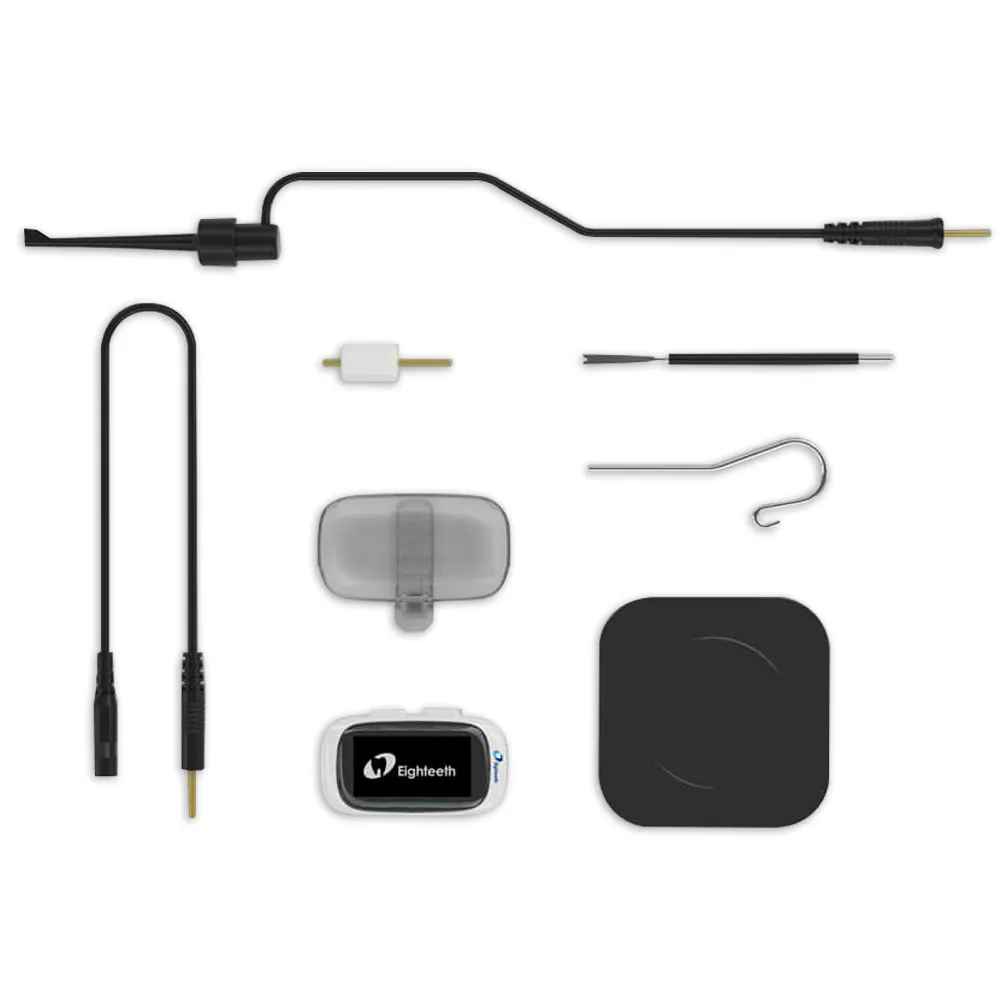

• 1 x Airpex (Main Unit)
• 1 x Charging Base
• 1 x File Clip
• 1 x Lip Clip
• 1 x Adapter
• 1 x Testing Probe

Charging:

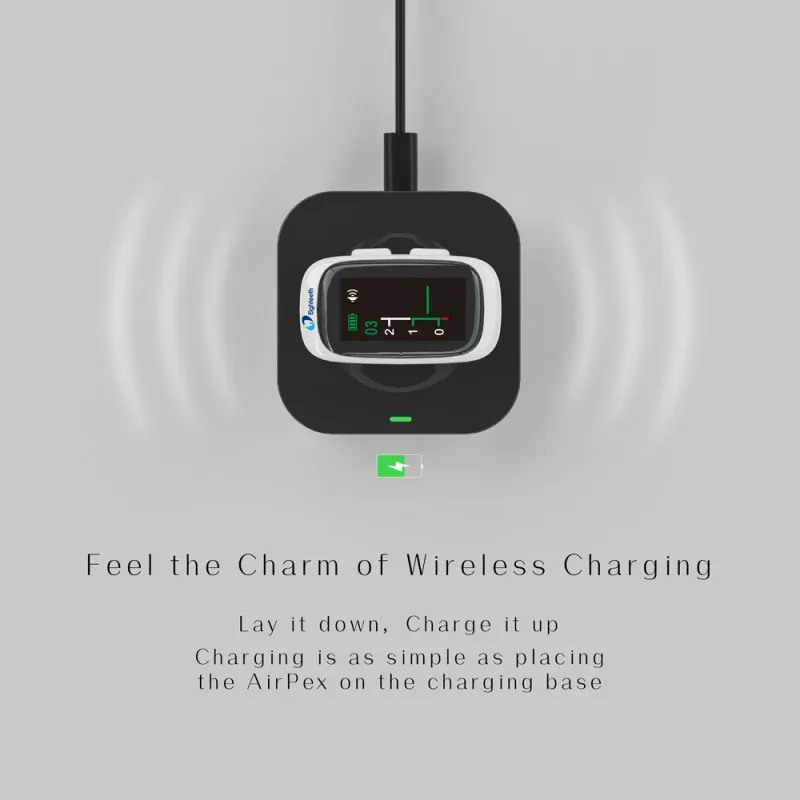

• Ensure the Miniature Apex Locator is fully charged using the provided wireless charging pad.

Preparation:

• Sterilize the lip clip, touch probe, and other components. Choose a silicone sleeve color if desired.

Assembly:

• Attach the sterilized lip clip securely onto the patient’s mouth for direct connection.

Power On:

• Turn on the Miniature Apex Locator and check the battery status indicator.

Setting Reference Point:

• Set the reference point between 0~1 during standby by following the device’s instructions.

Insertion:

• Gently insert the device into the root canal. Ensure proper contact with the canal walls for accurate measurements.

Measurement Feedback:

• Observe the real-time display for measurement feedback. Pay attention to visual indicators and auditory signals during the procedure.

Adjustment:

• Make adjustments based on the displayed measurements and auditory cues. Continue until the device indicates the desired endpoint.

Power Off:

• Turn off the Miniature Apex Locator after use. If not in use, the device may have an auto power-off function to preserve battery life.

Cleaning and Storage:

• Clean and sterilize the lip clip, touch probe, and other components according to the provided guidelines. Store the device in the protective case for future use.

• Country of Origin: PRC
• Manufacturer: Eighteeth

• Manufacturer/Importer warranty of 1 year as applicable for this product.
• Service and Warranty are handled by the manufacturer/importer directly for this product (Currently OnSpot Services are only available in Delhi/NCR )
• Supreme Dental will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Supreme Dental and the Buyer acknowledge that the Products purchased/used are a subject matter of the original Manufacturer/Importer’s warranties only
• Any or all claims about returns and replacement shall be made to the concerned Manufacturer/Importer only and Supreme Dental may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or does not tamper as the case may be.
